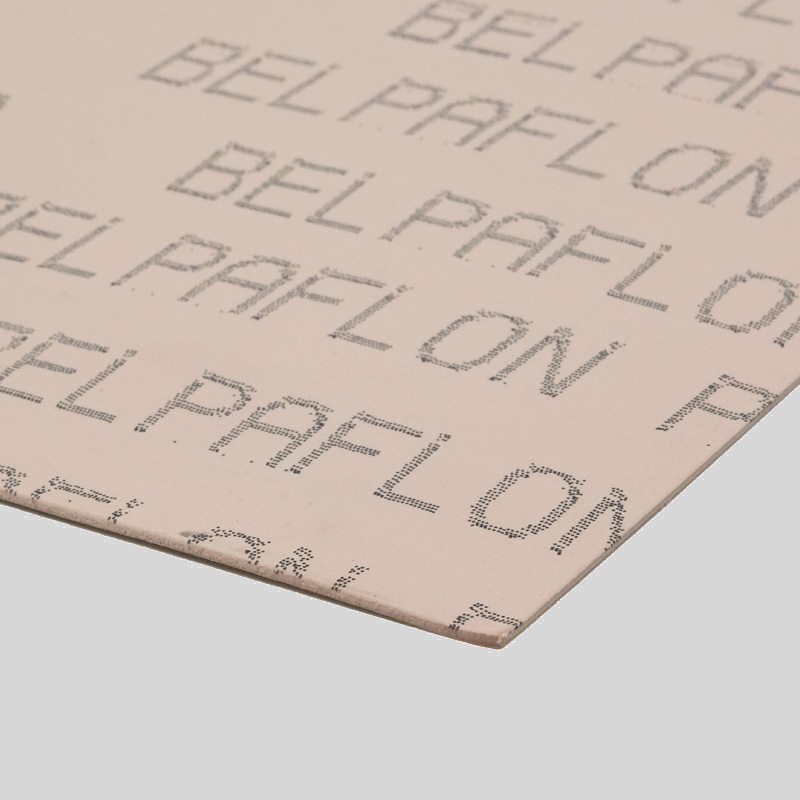

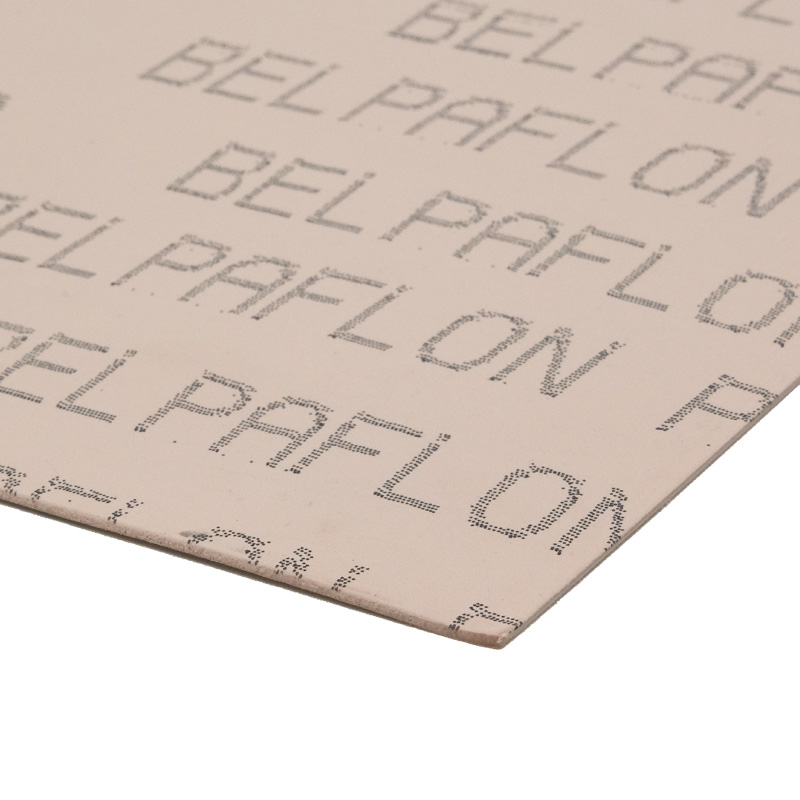

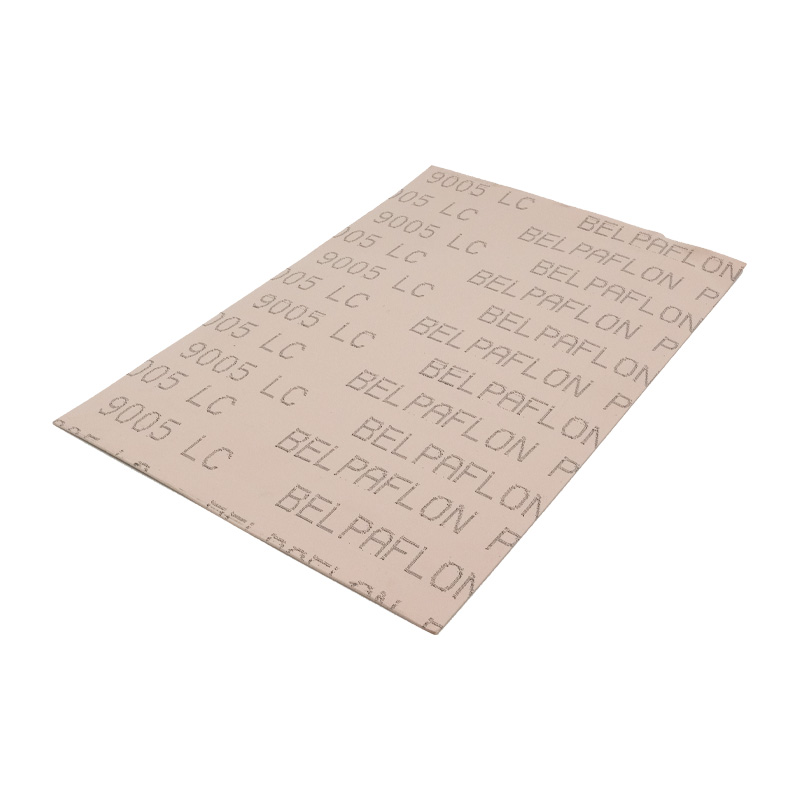

BELPAFLON PL-9005-LC

P.T.F.E sheet with an addition of special particles in order to increase the creep
deformation resistance. Gasket material with an excellent chemical resistance,
including acids and alcalis at high concentrations (sodium hydroxide, sulphuric
acid, nitric acid, hydrogen chloride, potassium hydroxide).
It is specially designed for services in which the chemical attack is combined with high
pressures and temperatures improving on the traditional P.T.F.E. sheets behaviour.
There is an addition of special charges that prevents the creep deformation.
Non flammable and no ageing, it is easy to cut and it has a excellent assembly and
disassembly as its antistick propierties. Complies with FDA Recommended in Chemical
and Petrochemical Industry and Paper industry, specially instead of Sandwich gasket.
BELPAFLON PL 9000 LC: white specially designed for pharmaceutical and
foodstuff Industry.
BELPAFLON PL 9006 LC: specially designed for low loading applications in
glass, ceramic and plastic flanges.

TECHNICAL DATA
Standard sizes (mm). Other upon request 1500 x 1500
Standard thickness (mm). Other upon request 1.5; 2.0; 3.0
Density (+/-10%) 2.20 g/cm3
Temperature min./max. (ºC) -200 / +260
Leakage Rate ( N2 ) DIN 3535 < 0.02 ml/min
Compressibility ASTM F-36 A 15%
Recovery ASTM F-36 A 30%
* Typical properties for 2 mm thickness.

P-T OPERATING GUIDELINES:
1- Usually satisfactory to use without reference to Montero.
Technical examination is normally unnecessary.
2- Must refer to Montero for advice. A technical examination is
recommended.
3- Area not recommended.
The P-T diagram helps the user or designer who often knows
the operating temperature and pressure to carry out an initial
selection of a suitable material. The P-T diagram cannot
guarantee the suitability of a material for an application.
