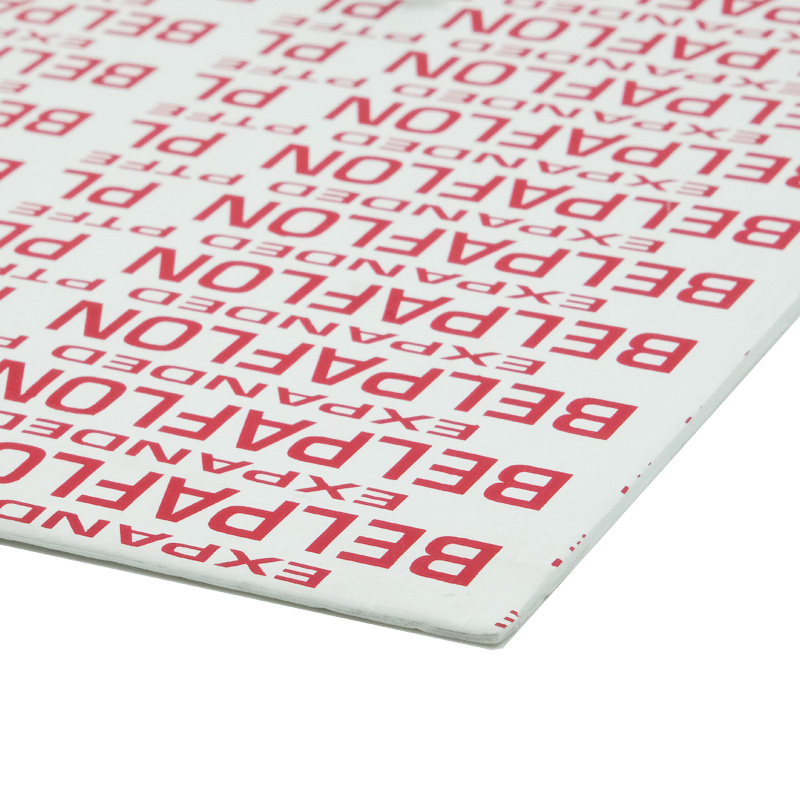

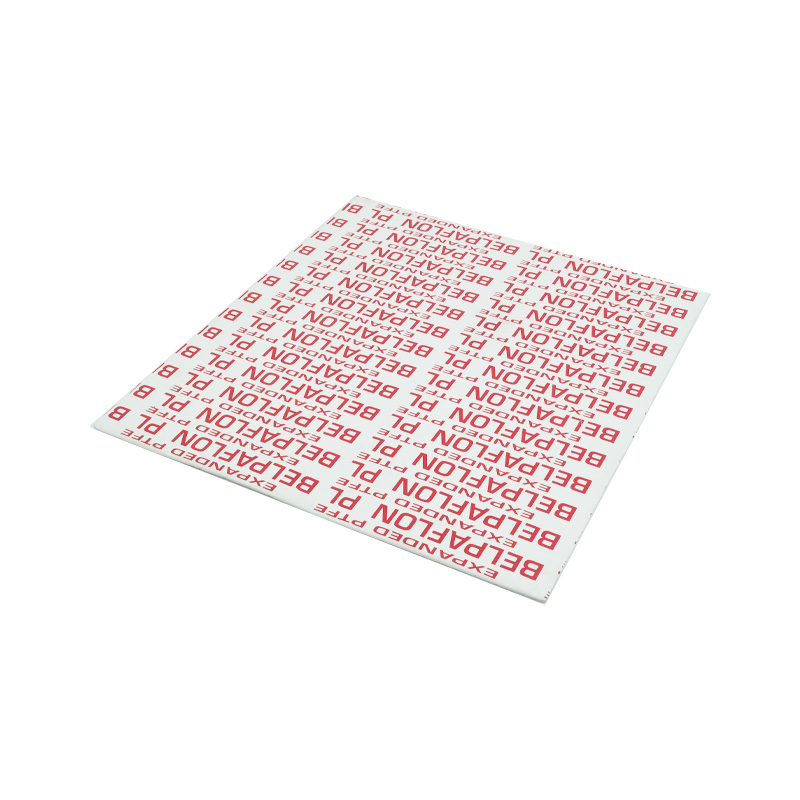

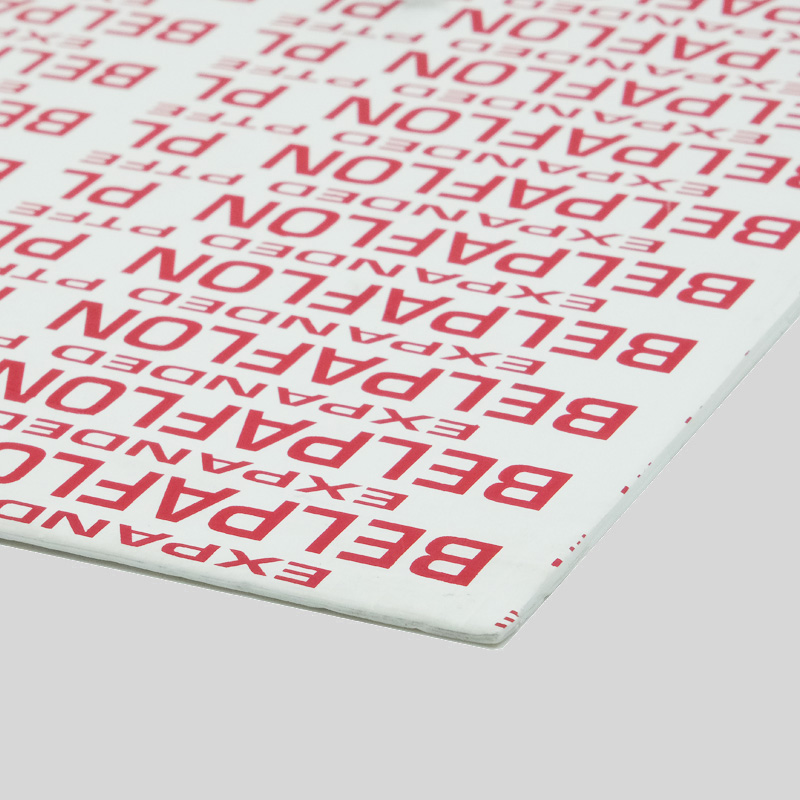

BELPAFLON PL

BELPAFLON PL is made of pure 100% expanded P.T.F.E.processed in a
manufacturing way that produces a microstructure with a high number
of multidirectional orientation of the fibers. This process confers a great
structural uniformity that gives the material the necessary qualities to be
used in a wide range of applications.
BELPAFLON PL is recommended where high resistance to chemical attack and
corrosion is required and, in special, for chemical, pharmaceutical and food
industry (Complies FDA homologation).

TECHNICAL DATA
Standard sizes (mm) 1500 x 1500
Standard thickness (mm). Other upon request 1.5; 2.0; 3.0
Temperature min./max. (ºC) -200 / +260
Compressibility ASTM F-3 66%
Recovery ASTM F-36 A 10%
Leakage Rate ( N2 ) DIN 3535 0.01 ml/min
* Typical properties for 2 mm thickness.

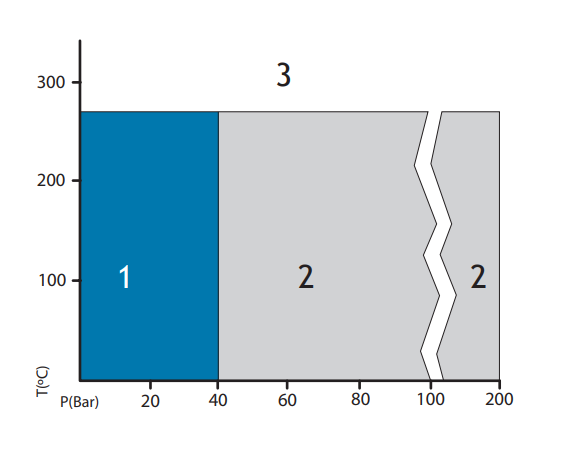

P-T OPERATING GUIDELINES:
1- Usually satisfactory to use without reference to Montero.
Technical examination is normally unnecessary.
2- Must refer to Montero for advice. A technical examination is
recommended.
3- Area not recommended.
The P-T diagram helps the user or designer who often knows
the operating temperature and pressure to carry out an initial
selection of a suitable material. The P-T diagram cannot
guarantee the suitability of a material for an application.
