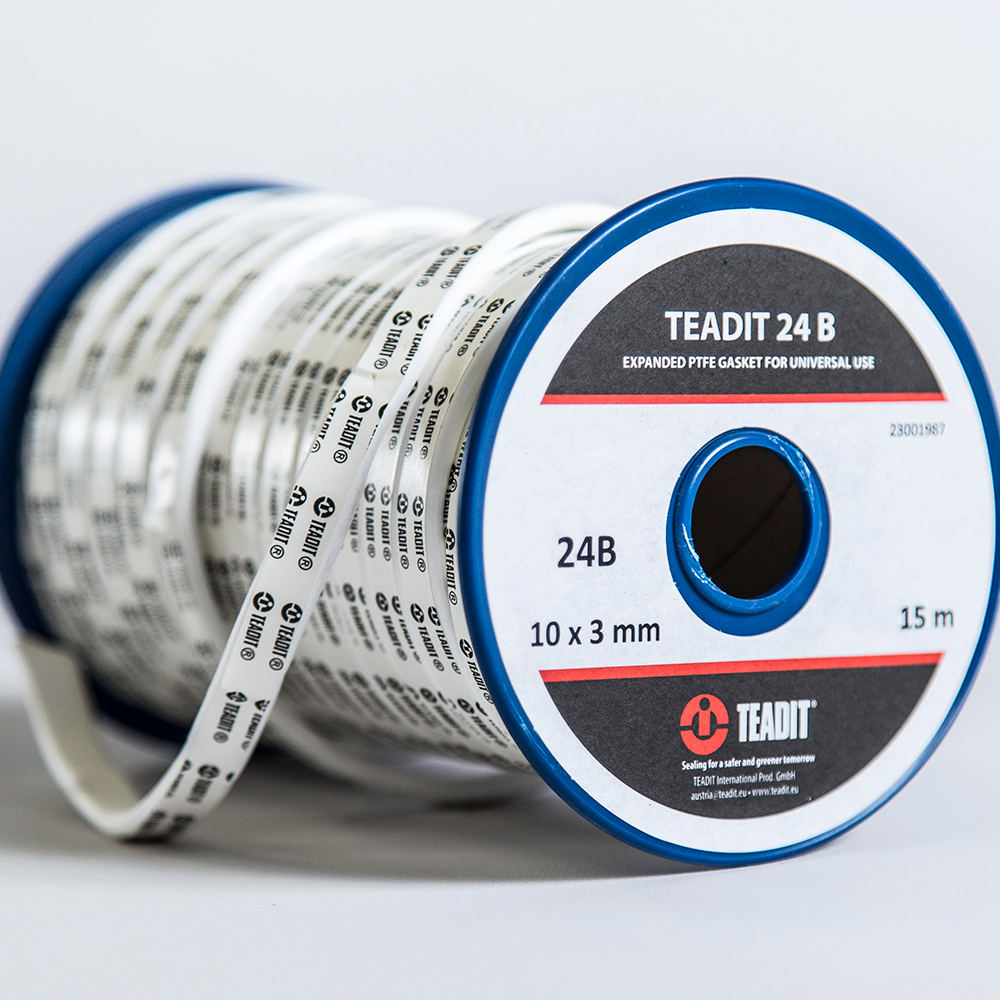

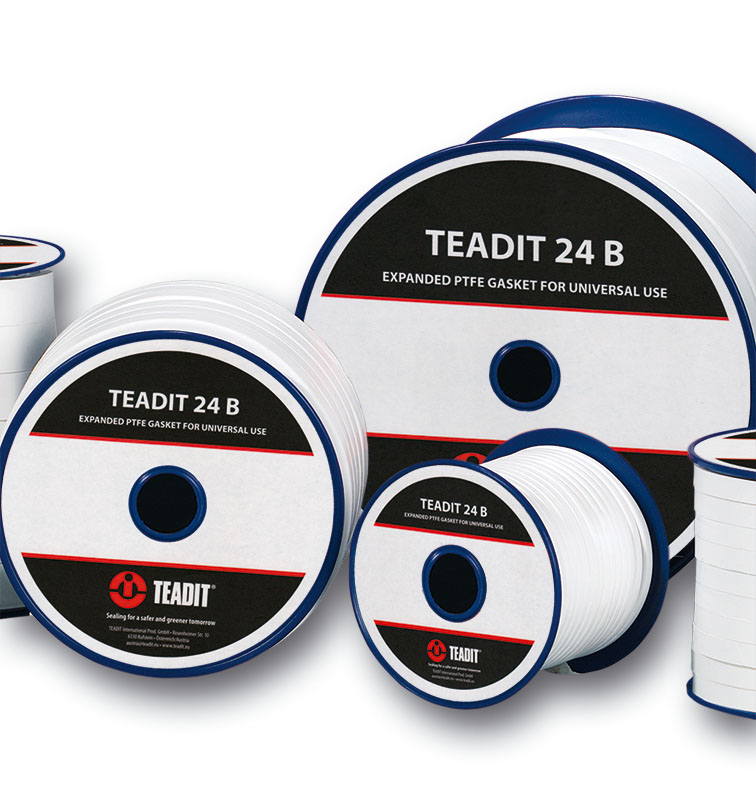

TEADIT 24B

Description:
TEADIT 24 B is a gasket material made from pure, expanded,
virgin PTFE. TEADIT maintains a quality and environmental
management system that is certified according to DIN EN ISO
9001 and DIN EN ISO 14001.
Application areas:
Because of the excellent thermal and chemical resistance of
TEADIT 24 B, it can be used in a wide variety of static
applications in nearly all kinds of the industry. The exceptional
malleability of expanded PTFE can compensate for out-ofparallel
and/or damaged sealing surfaces and allows use with
stress sensitive connections and applications where only a limited
flange load is available.
Typical applications are the sealing of flanges, pump housings,
compressors, hand- and manholes, air ducts, compensators,
heat exchangers and many more.
Technical data:
• PTFE Temperature range: -268 °C to +260 °C
(short time +315 °C)
• Chemical resistance: resistant against all chemicals from
pH 0-14 - except molten alkali metals and elemental fluorine at
high temperature and pressure
• Density: 0,65 g/cm³, +/- 0,1 g/cm³ (for rectangular crosssections
only)
• Aging resistance: TEADIT 24 B does not age (please note:
adhesive tape has limited shelf life!) and is UV-resistant
• TEADIT 24 B is physiologically harmless. It has no smell or taste.
It is neither contaminating nor toxic. It complies with the FDA 21
CFR 177.1550 Perfluorcarbon Regulations
• Color: white
Typical application range:
• Temperature range: -60 °C up to +230 °C
• Operating pressure: from vacuum to 40 bar
For details on applications with higher temperatures and / or
pressure please contact TEADIT application engineering!
Approvals:
• DVGW
• WRAS
• FDA & EC 1935/2004 & EU 10/2011 (all incl. adhesive)
• TA-Luft
Tests:

• BAM

---

Advantages:
• Quick and simple installation: adhesive strip makes
installation easier
• Reduced down time: immediately available, no cutting or
punching of gasket necessary
• Reduced stock: a few spools of different sizes cover most
applications within a plant
• No risk: the versatility of TEADIT 24 B eliminates the risk of
using wrong material for a certain application – this prevents
avoidable breakdowns
• No waste: TEADIT 24 B is a gasket from a spool, no material
gets wasted
