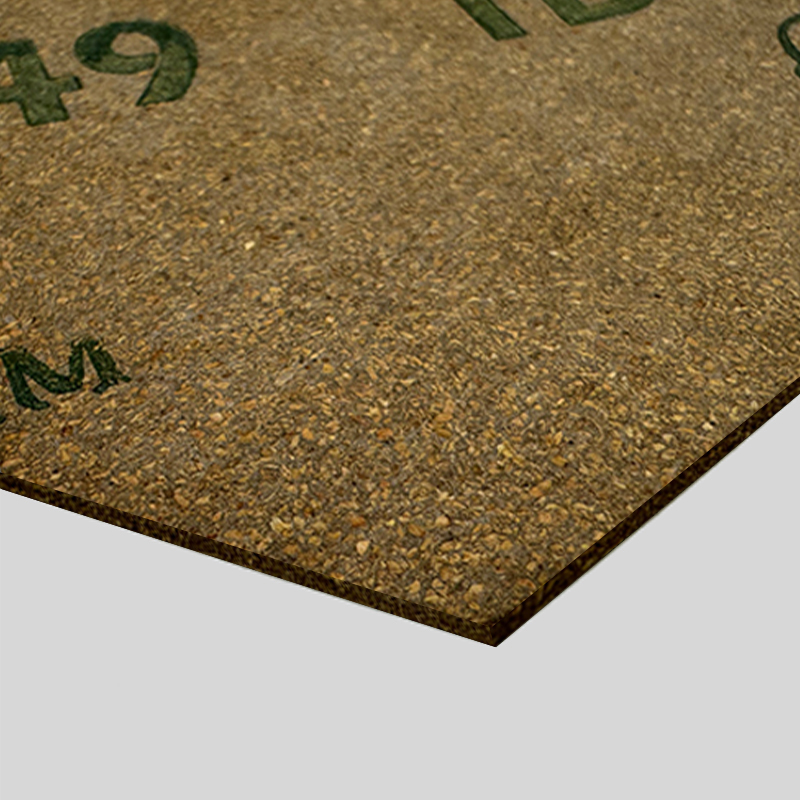

AMORIM TD1049

Product Overview
AMORIM TD1049 is a nitrile rubber-based sealing material specifically designed for transformers and power equipment. This product exhibits excellent compatibility with various insulating media including mineral oils, natural ester oils, and silicone oils. It maintains stable sealing performance under prolonged high-temperature conditions, meeting the reliable sealing requirements of power equipment.

Product Features

Excellent Oil Compatibility: Suitable for mineral oils, natural ester oils, silicone oils, and SF6 gas media

Superior High-Temperature Stability: Maintains performance stability under long-term operation at 125°C

Reliable Mechanical Properties: Features high compressive strength and tensile strength

Environmentally Safe: Free from harmful substances including asbestos, polycyclic aromatic hydrocarbons, and heavy metals

Professional Certifications: Passed electrical insulating oil compatibility tests including ASTM D3455 and ASTM D5282

Typical Applications

Sealing for power transformer enclosures

Sealing for high-voltage electrical equipment

Flange connections in insulating oil systems

Power equipment requiring oil-resistant seals

Technical Parameters (Summary)

Operating Temperature: -30°C to 125°C

Density: 750–950 kg/m³

Hardness: 70–80 Shore A

Tensile Strength: >14 MPa

Compressive Strength: >70 MPa
