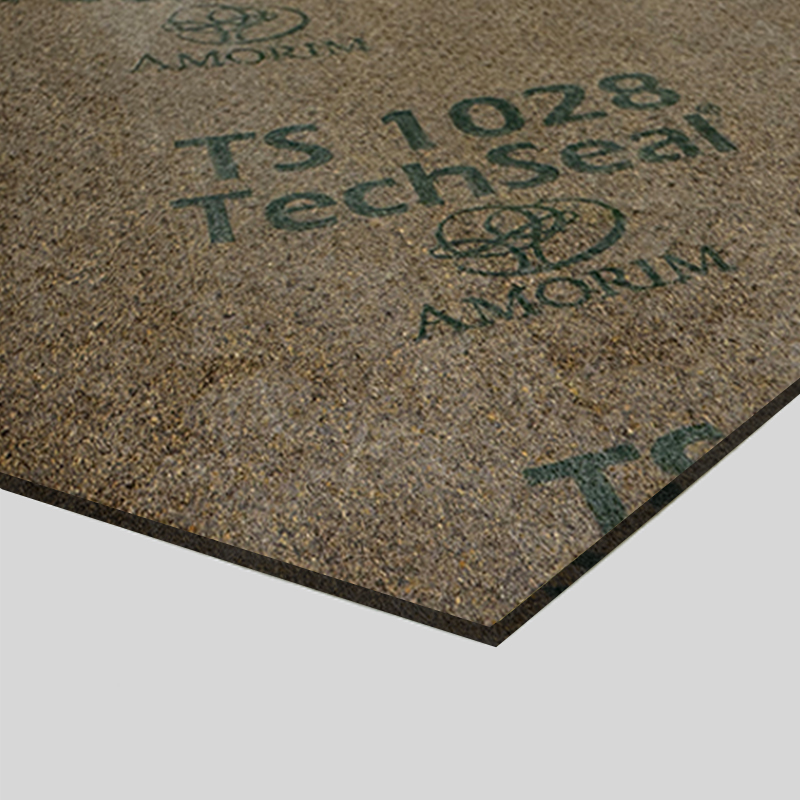

TS1028

Product Overview
AMORIM TS1028 is a block sealing material composed of nitrile rubber as the binder and natural cork granules as the matrix. This product offers excellent compressibility and rebound recovery properties. It has obtained DVGW certification for drinking water safety and is suitable for applications requiring material safety and reliable sealing.

Product Features

Excellent Compression Recovery: High compression ratio and stable rebound rate, conforming to flange surfaces

Reliable Safety Certification: DVGW-certified, compliant with drinking water contact material standards

Environmentally Friendly Composition: Primarily made from natural cork, a renewable resource

Balanced Mechanical Properties: Moderate density and tensile strength, meeting standard sealing requirements

Good Storage Stability: Maintains consistent performance over extended periods under standard environmental conditions

Typical Applications

- Flange sealing in potable water pipeline systems
- General industrial equipment gaskets
- Connections in water treatment equipment
- Sealing and vibration damping in low-pressure applications

Technical Parameters (Summary)

Density: 700–900 kg/m³

Compression set: 25–40% (at 400 psi)

Rebound rate: ≥75%

Tensile strength: ≥1.0 N/mm²

Cork particle size: 0.5/1 mm

Certification standard: DVGW (DIN 3535/5)
