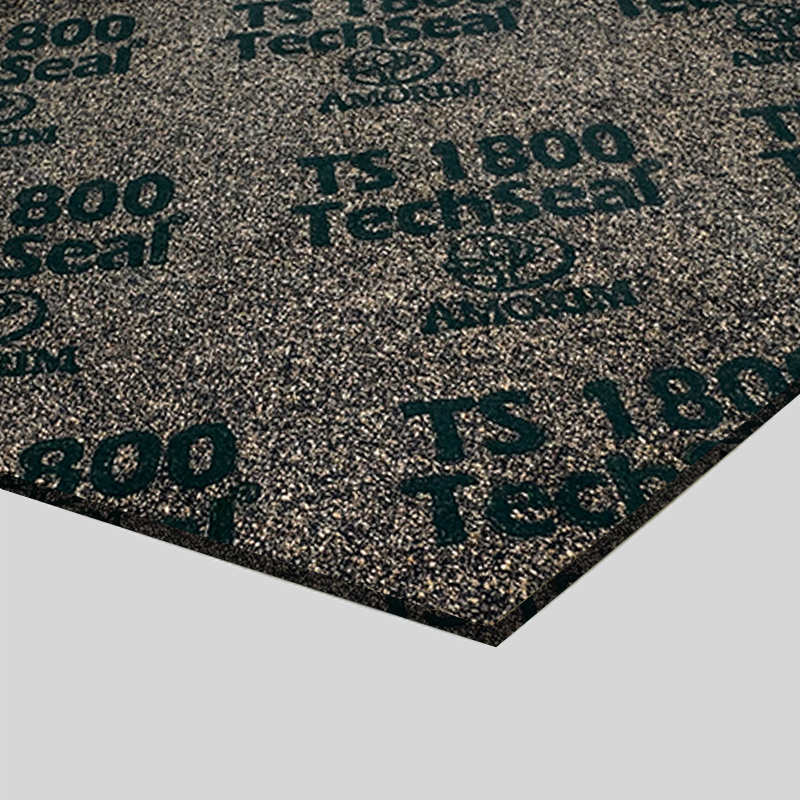

AMORIM TS1800

Product Overview
AMORIM TS1800 is a sealing gasket material composed of cork particles and nitrile rubber (NBR). This product combines the compression recovery properties of cork with the sealing performance of rubber, delivering reliable sealing in diverse industrial environments. It is suitable for applications requiring both sealing and vibration damping.

Product Features

Balanced Elasticity and Sealing: Cork structure provides excellent compression recovery, while rubber matrix ensures effective sealing

Good Oil Resistance: Demonstrates stable tolerance to various oil-based media

Reliable Mechanical Properties: Offers appropriate tensile strength and hardness range

High Adaptability: Material flexibility accommodates moderate surface irregularities

Environmentally Friendly & Recyclable: Utilizes renewable cork resources, aligning with sustainable development principles

Typical Applications

Automotive engine and transmission seals

General industrial equipment gaskets

Home appliance sealing and vibration damping

Mechanical equipment shock absorbers and buffers

Technical Parameters (Summary)

Density: 832–1088 kg/m³

Hardness: 65–86 Shore A

Compression set: 15–30% (at 400 psi)

Rebound rate: ≥75%

Tensile strength: ≥1.72 MPa

Cork particle size: 0.5/1 mm
