NA1005

NA-jointing-sheet TEADIT NA-1005
Description:
TEADIT style NA-1005 is a compressed non-asbestos jointingsheet
material produced from a blend of aramid and other
synthetic fibers bonded with Nitrile Rubber (NBR). NA-1005 is a
general purpose material with very good mechanical,
temperature and chemical properties. It is being manufactured
by means of a hot calender process. TEADIT maintains a quality
management system that is certified according to DIN EN ISO
9001.
Application / service:
TEADIT style NA-1005 is indicated for air, brine, water, low
pressure steam, organic and weak inorganic acids, diluted and
concentrated alkalis, petroleum derivatives, synthetic and
vegetable oils, aliphatic and chlorinated solvents, refrigerants,
gases and chemical products in general.
Typical physical properties:
Test Properties Values
ASTM F 36 Compressibility 7-17 %
ASTM F 36 Recovery >45 %
ASTM F 38 Creep relaxation 25 %
ASTM F 37A Sealability at 1000 psi 0,25 ml/h
ASTM F 146 Weight increase:
ASTM oil/Nr.3, 5 h/300 °F (150 °C) <15 %
ASTM Fuel B, 5 h/77 °F (25 °C) <15 %
ASTM F 146 Thickness increase:
ASTM oil/Nr. 3, 5 h/300 °F (150 °C) <12 %
ASTM Fuel B, 5 h/77 °F (25 °C) <10 %
ASTM F 152 Tensile strength, transverse 11,5 N/mm²
DIN 52913 Residual Stress 28 N/mm2
- Density app.1,75 g/cm³
Product standard:
• Thickness: 0.5 / 1.0 / 1.5 / 2.0 / 2.5 and 3.0 mm
• Sheet size: 1.500 x 1.600 mm, 1.500 x 3.200 mm

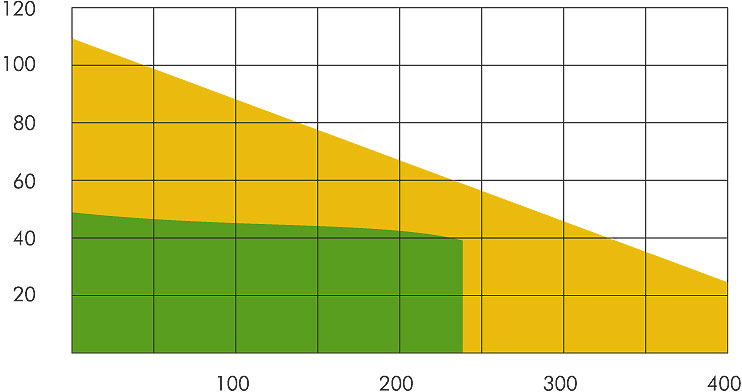

Technical data:
• Peak temperature: +400 °C
• Constant temperature: +240 °C
• Peak pressure: 110 bar
• Constant working pressure: 50 bar
• Color: blue (other colors on request)
Tests & Approvals:
• ABS

• ISO 19221 Flame resistance
