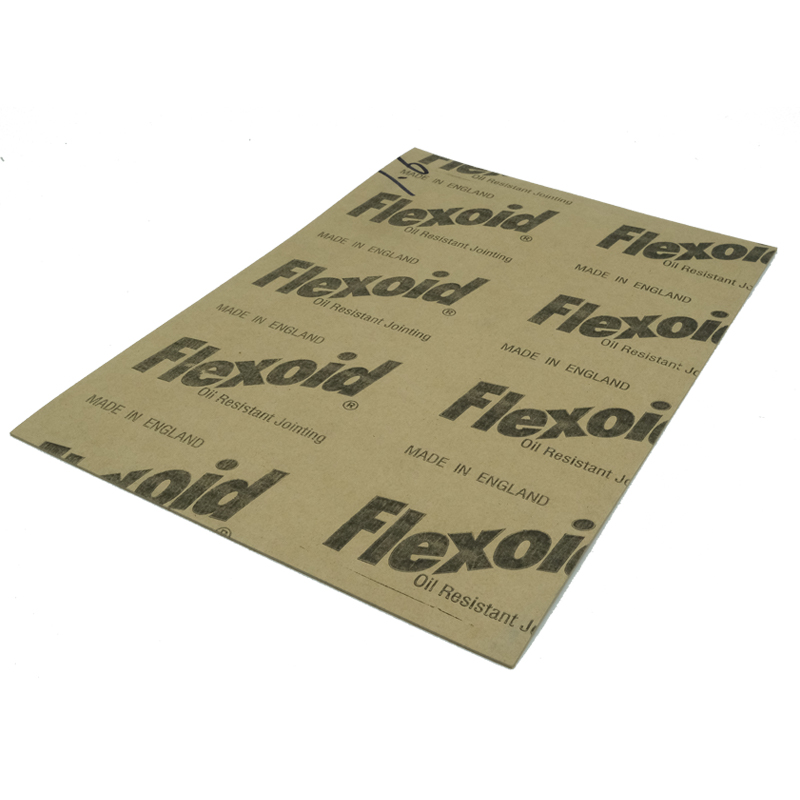

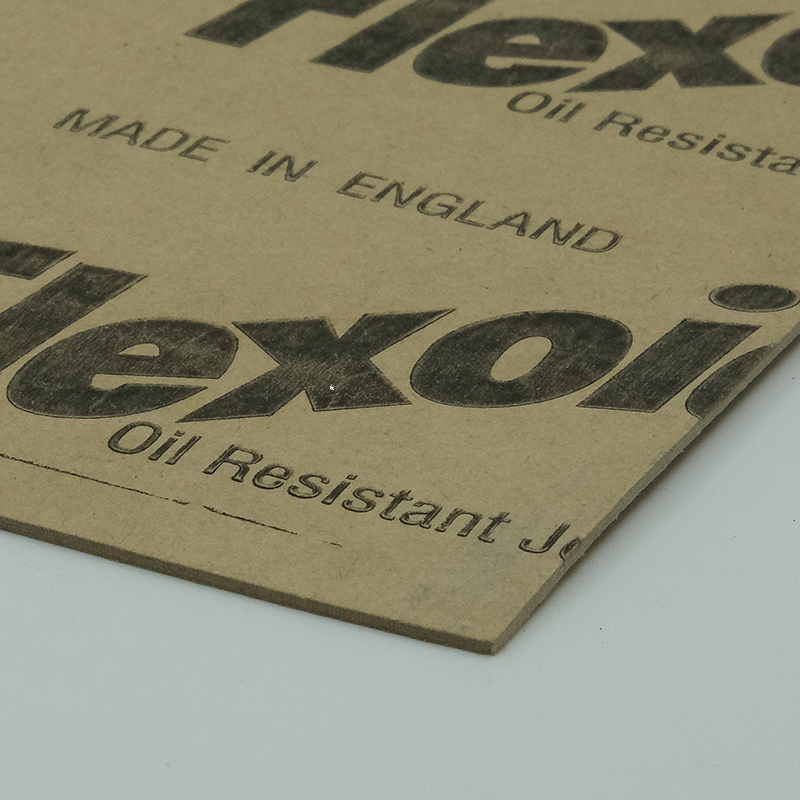

Flexoid

FLEXOID is a plasticised gelatine impregnated, cellulose based gasket material. The prime market for this material is the automotive sector, but it is also extensively used in other industries i.e. water jet cutting etc.

It is a very economical material, especially where price is a factor when dealing with original equipment and replacement markets.

Characteristics

Advantages

Excellent oil and fuel resistance

Seals better at lower cost

Available in roll or sheet form over a wide range of thicknesses

Limitations

Stored gaskets must be protected from wide changes of humidity and temperature to prevent dimensional change

Not suitable for alkalis, acids and steam

Maximum recommended service temperature: 120°C

Uses

Prime market: automotive

Limited uses in industrial markets because of relatively low heat and chemical resistance compared with other non-asbestos materials.

Because of its ability to seal against petrol, oil and water at low cost, Flexoid is used extensively by leading British, European and US automotive manufacturers

Flexoid has a major market share in the big four of the European Economic Community, i.e. U.K., Germany, France and Italy

Basic Engine

Carburettor; Fuel Pump; Front Plate; Oil Pump; Oil Filter; Side Cover; Timing Cover; Thermostat; Water Pump

Gearbox

Input Shaft; Exit Housing; Top Cover; Gearbox to Clutch.

Rear Axle

Axle Cover; Axle Shaft.
