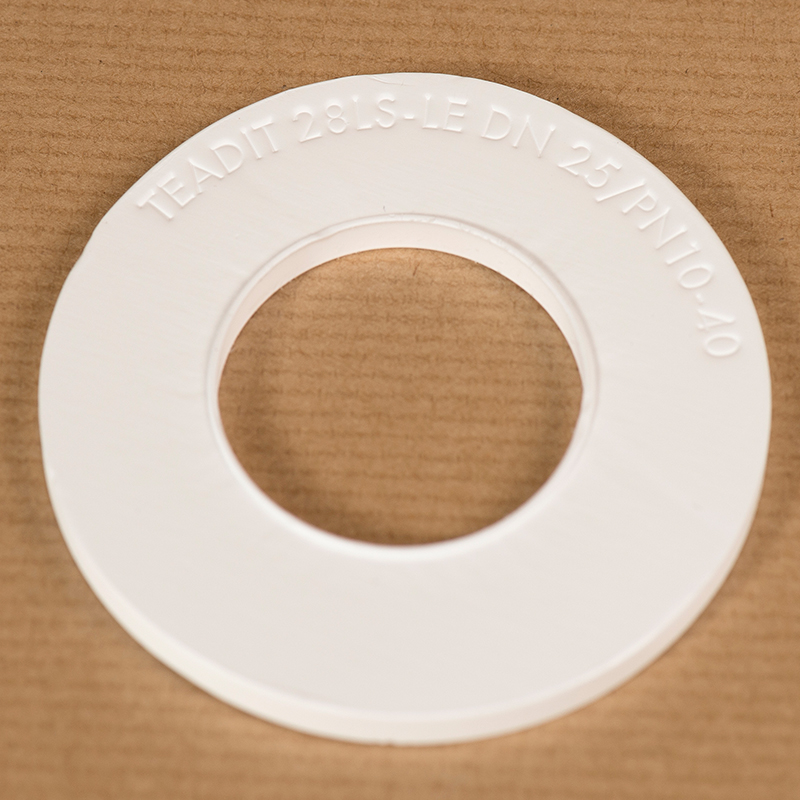

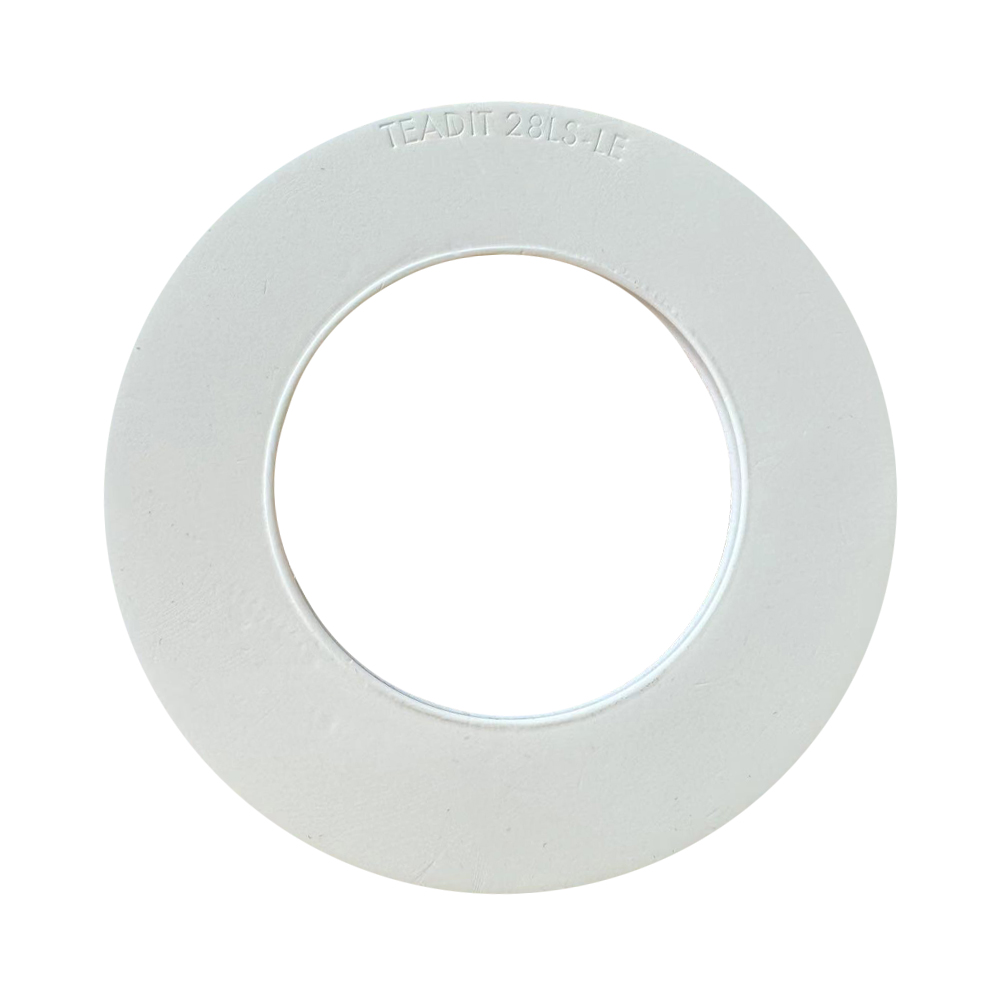

TEADIT 28LS-LE

TEADIT® 28LS-LE biocompatible gasket is designed for use in the pharmaceutical, chemical and food industries. The diffusion barrier ensures extremely high sealing properties at very low gasket stresses. TEADIT® 28LS-LE gaskets are therefore ideally suited for (but not limited to) sealed connections where only very low surface pressures can be applied. Meet the most demanding purity requirements. They are intrinsically clean and suitable for CIP/SIP cycles. Produced in accordance with GMP requirements with full supply chain integrity and traceability. FDA and EC 1935/2004 certificates from the FraunhoferInstitute confirm their suitability for use in the food and pharmaceutical industries. Suitable for a wide range of flange types: glass-lined, FRP (fiber-reinforced plastic), glass, plastic, also for metal flanges GMP-compliant packaging: up to 2 gaskets in a plastic bag / plastic bag packed in cardboard.

Approvals.
FDA, TA Luft, Blow-ot test (VDI 2200)EC 1935/2004,EU 10/2011,USP VI

Typical Standard Sizes
Thickness 3.0 and 6.0mm
DIN EN 1514 DN10-DN800
and PN 2.5-PN 40 in IBCASME B 16.21#150½“-24” for RF and FF Other sizes on request.
